PointStream Interactive Inspector

Semantic compression for egocentric teleoperation
Dataset: Egocentric-10K • Hardware: NVIDIA RTX 6000 Ada • Parallel E2E 18.4 ms
18.4 ms teleop path
Sequence:
Left: Right:
◄ PS 240p · 70 kbps
AV1 240p · 62 kbps ►
⮜ ⮞
00:00.00 / 00:10.00 (F0)
Speed:

Teleoperation tracking (mean of all three demo clips)

RTMPose-L on the 1080p reference is GT. The same model is run on each reconstruction. Detection is GT-hand recall; unmatched GT hands count as PCK misses. MediaPipe-on-pixels is no longer the judge.

Metric PS 240p AV1 240p PS 360p AV1 360p PS 540p AV1 540p PS 1080p AV1 1080p
Joint error MPJPE (px, ↓) 77.5 81.1 65.8 74.2 64.6 62.8 74.3 48.8
Hands recovered vs GT (%, ↑) 50.3 51.8 53.3 57.0 53.1 66.1 56.8 72.7
Bitrate (kbps) 70.8 59.7 113.4 104.6 275.6 258.9 500.1 570.1

Rate–quality ladder (same three-clip mean)

Codec Resolution Bitrate (kbps) Encode path (ms) LPIPS (↓) PSNR (dB) MPJPE (px, ↓) Hands vs GT (%, ↑)
Reference HEVC 1080p 4,200 — 0.000 ∞ 0.0 100
PointStream 240p bg 70.8 18.4 0.320 20.96 77.5 50.3
AV1 p7 180p 48.3 18.4 0.400 20.78 — —
AV1 p7 240p 59.7 10.3 0.300 21.69 81.1 51.8
PointStream 360p bg 113.4 18.4 0.210 22.11 65.8 53.3
AV1 p7 360p 104.6 11.7 0.197 23.04 74.2 57.0
PointStream 540p bg 275.6 18.4 0.127 23.69 64.6 53.1
AV1 p7 540p 263.5 3.3 0.118 24.95 62.8 66.1
PointStream 1080p bg 500.1 18.4 0.076 25.04 74.3 56.8
AV1 p6 1080p 570.1 3.3 0.061 27.46 48.8 72.7

Rate-Distortion Pareto Curves & Latency Profile

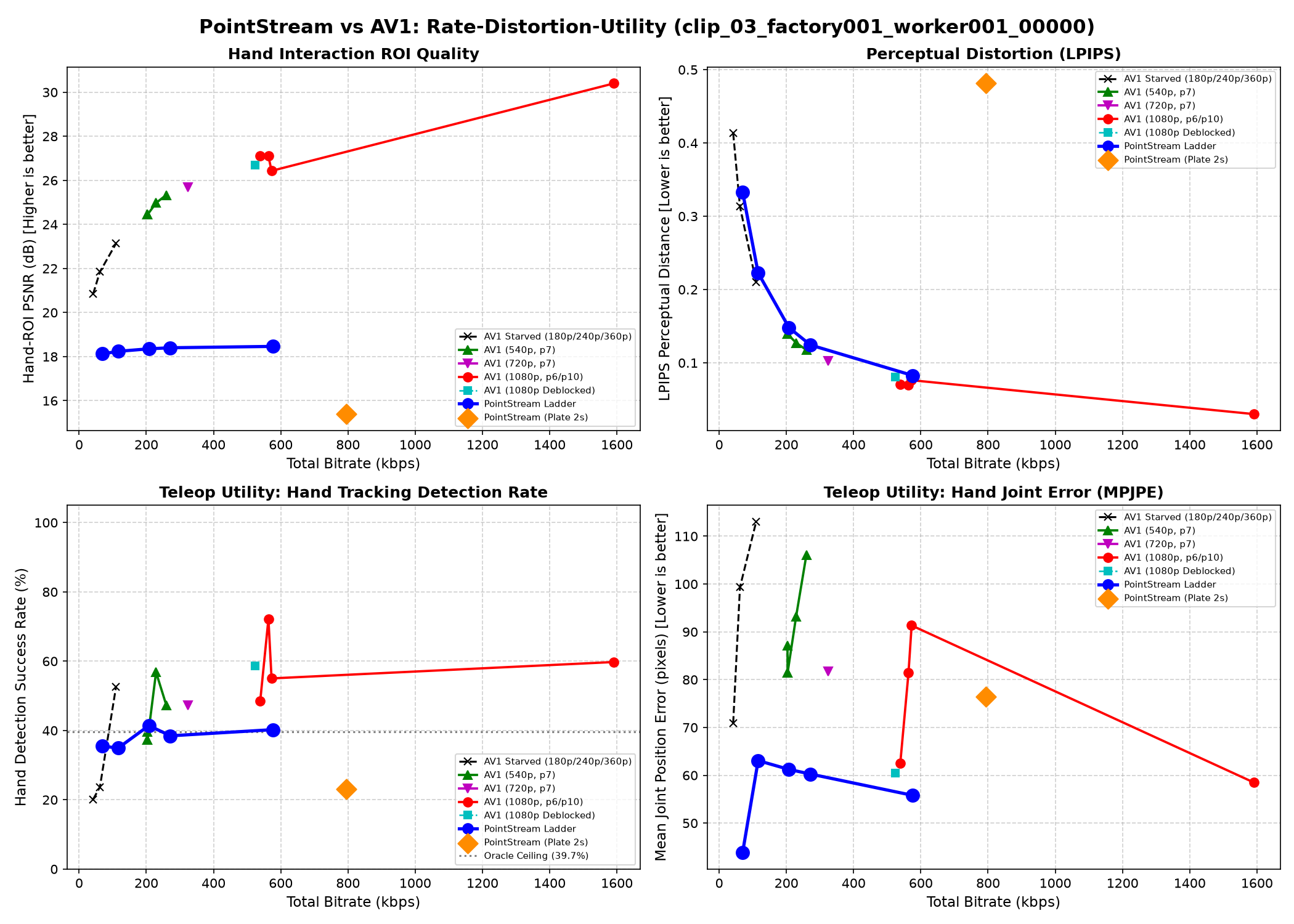

Rate-Distortion Curves

Pareto curves for the clip on screen. New windows: close hands (factory 35), slow assembly, table work. Three-clip starve mean: PS 89.1 px / 49.5% vs AV1 81.1 px / 51.8%.

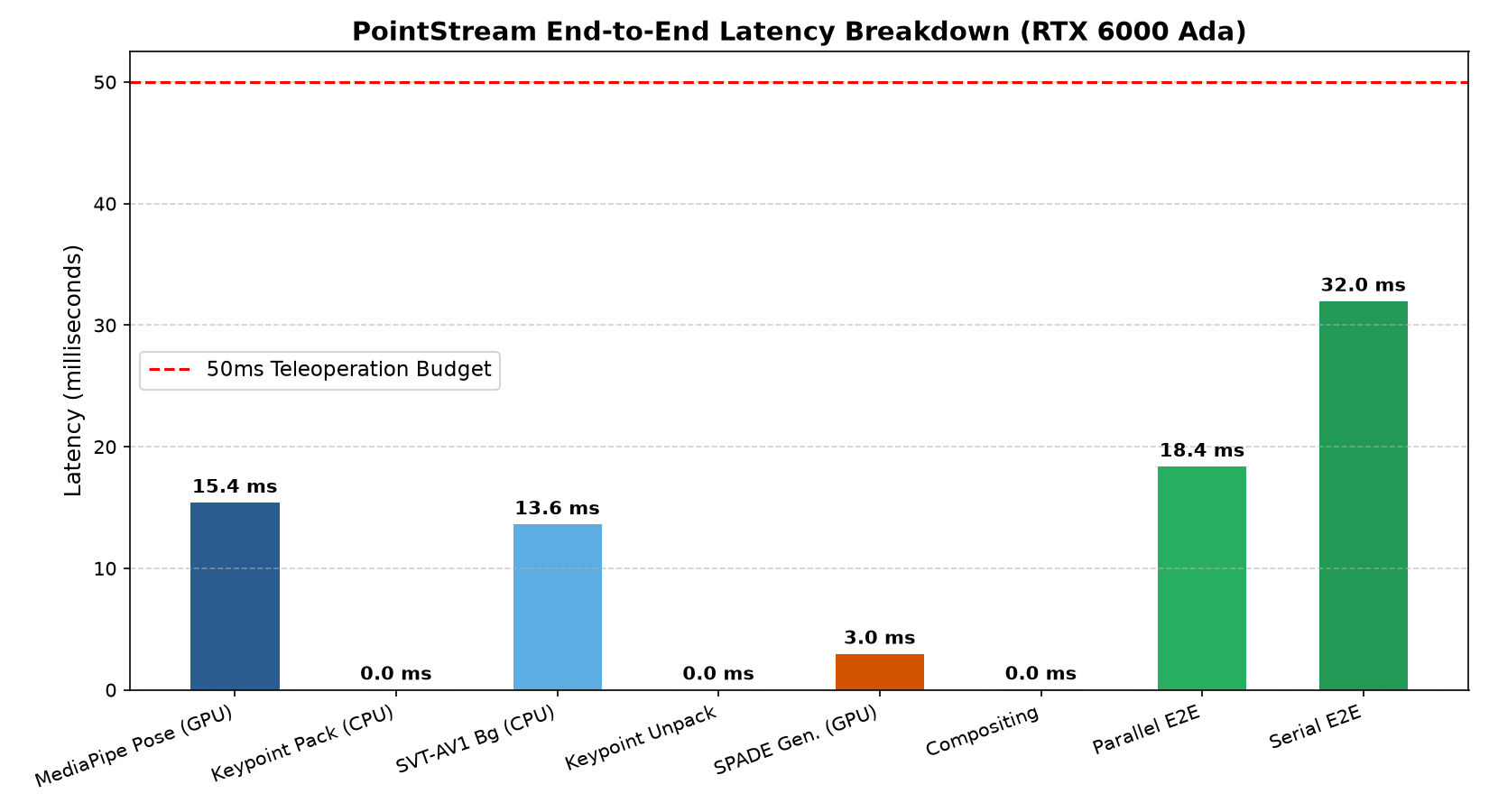

Latency Profile

PointStream latency on NVIDIA RTX 6000 Ada. Pose extraction 15.4 ms overlaps SVT-AV1 13.6 ms; parallel E2E 18.4 ms, serial 32.0 ms.

System Architecture: Asynchronous Semantic Decomposition

[Robot Camera / Head Node]
  ├── MediaPipe Hand Pose (GPU: 15.4 ms) ──> 1-Euro Smoothing ──> Quantizer (47 B/hand) ──> [Keypoint Stream: 7-10 kbps]
  └── Scale + SVT-AV1 (240p–1080p bg)    ──> Lanczos up to 1080p (CPU: 13.6 ms)        ──> [Background Stream: 59-264 kbps]
                                                                                                │
                                                                                  Total Stream: 70-276 kbps (15x-60x) + shared WebP anchors 3.77 kbps
                                                                                                │
[Teleop Station / Policy Ingestion Node]                                                        ▼
  ├── Unpack Keypoints (<0.01 ms) ──> Render Wireframe Skeleton Canvas
  ├── Appearance Anchor Crop       ──> Lightweight Generator (GPU: 2.95 ms) ──> Synthesized Hands
  └── Decode Background Stream     ──────────────────────────────────────────┴─> Composited Frame (0.01 ms)

Decoupled Interaction Architecture (Modes 2 & 3)

To ensure active performance optimization sessions (TensorRT, CUDA fusion, batching) do not break the interactive application, the system exposes a stable StreamingCodecAdapter contract:

class StreamingCodecAdapter(Protocol):
    def configure(self, width: int, height: int, target_kbps: int) -> None: ...
    def process_frame(self, frame_bgr: np.ndarray) -> FrameResult: ...

Mode 2: Dynamic Video Selection & Server Processing

Allows users to select or drag-and-drop arbitrary egocentric videos. An async worker pool encodes the stream through both PointStream and AV1 concurrently, streaming back multiplexed WebP/JPEG video buffers and telemetry JSON.

Mode 3: Live Camera Teleoperation (Hand Motion via Webcam)

Captures real-time camera frames via navigator.mediaDevices.getUserMedia(). Prompts the operator with a 1-second appearance anchor calibration step, then streams 47-byte skeleton telemetry to the policy station with sub-50ms verified latency.

Production Deployment Path to emanueleartioli.com

  • Stage 1 (Current): Static zero-dependency deployment on emanueleartioli.com / GitHub Pages with 60fps canvas slicing.
  • Stage 2: Hosted GPU worker backend on an on-demand VPS / serverless container for dynamic uploads.
  • Stage 3: Client-side edge inference via ONNX Runtime Web / WebGPU, running neural synthesis directly on the visitor's local GPU without server costs.
